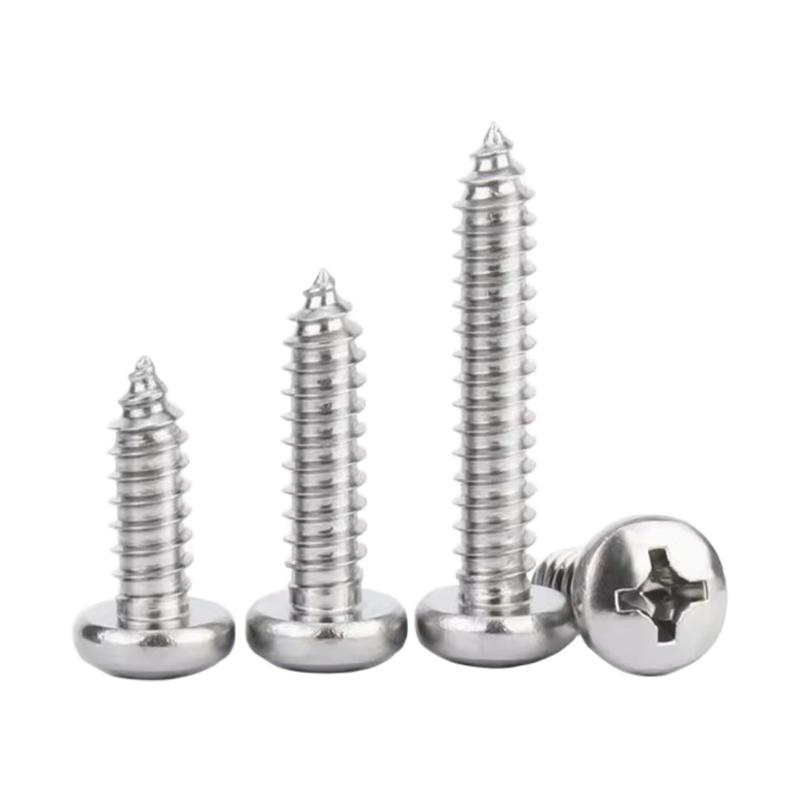

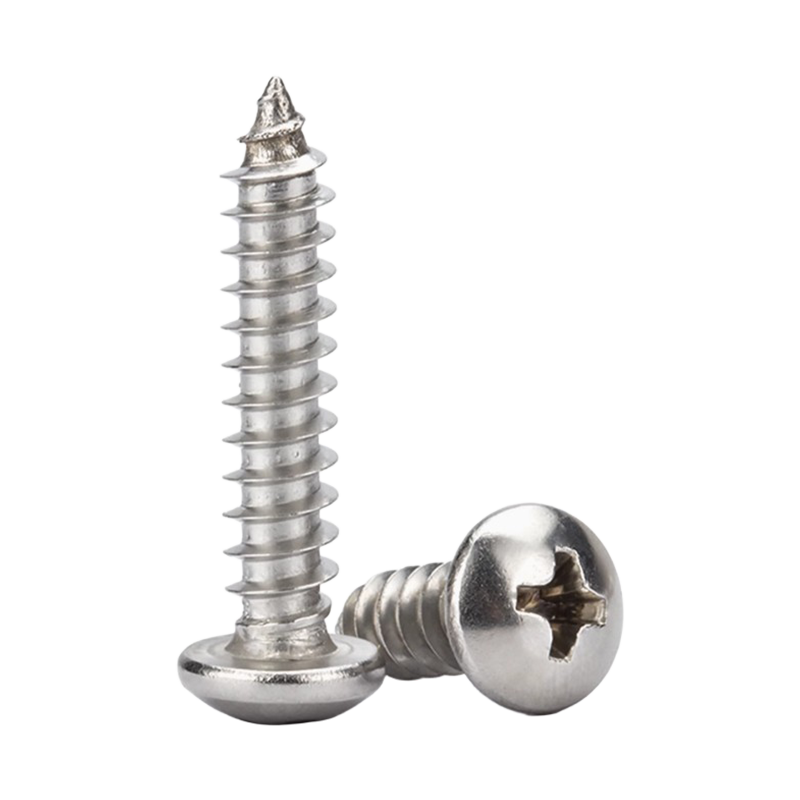

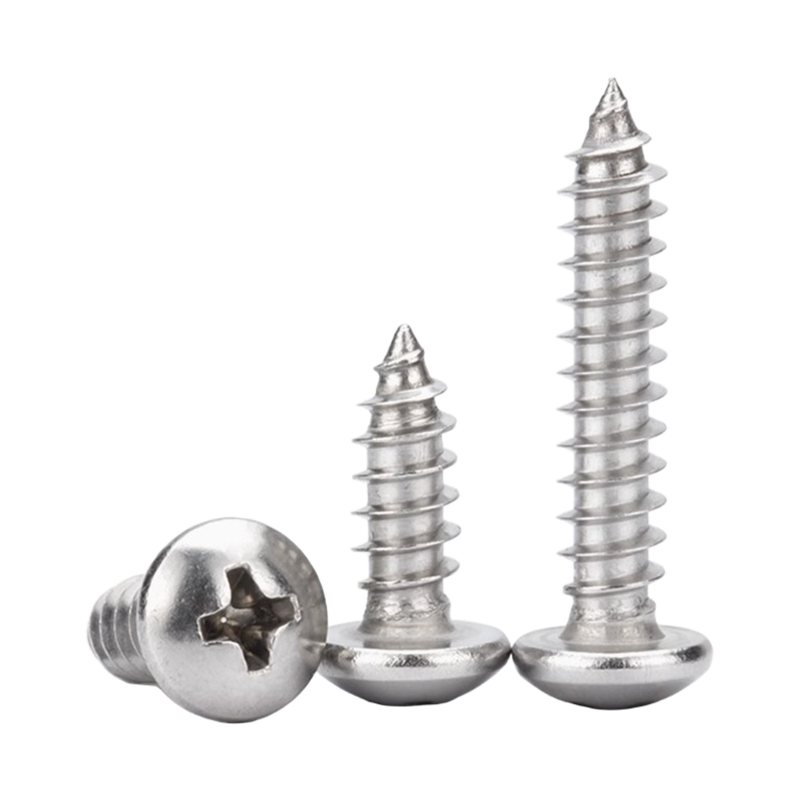

SUS410 pan head self-tapping screw is a high-strength stainless steel screw that can directly penetrate the profile and is commonly used in aluminum alloy splicing. The cross slot and thread will not be damaged.
SUS410 pan head self-tapping screw is a high-strength stainless steel screw that can directly penetrate the profile and is commonly used in aluminum alloy splicing. The cross slot and thread will not be damaged.
|
Material |
SUS410 |
|
Head type |
Pan head |
|
Hardness |
Heat treatment strengthened |
| Thread size | Length | ||||||
| 2.9(#4) | 8,9.5,13,16,19,25,32mm (5/16"~1-1/4") |
||||||
| 3.5(#6) | 9.5,13,16,19,25,32mm (3/8"~1-1/4") |
||||||
| 3.9(#7) | 13,16,19,22,25,32,35,38,40,45,50mm (1/2"~2") |
||||||
| 4.2(#8) | 13,16,19,22,25,32,35,38,40,45,50,63,75mm (1/2"~3") |
||||||
| 4.8(#10) | 13,16,19,22,25,32,35,38,40,45,50,63,75,102mm (1/2"~4") |
||||||
| 5.5(#12) | 13,16,19,22,25,32,35,38,40,45,50,63,75,102mm (1/2"~4") |
||||||
