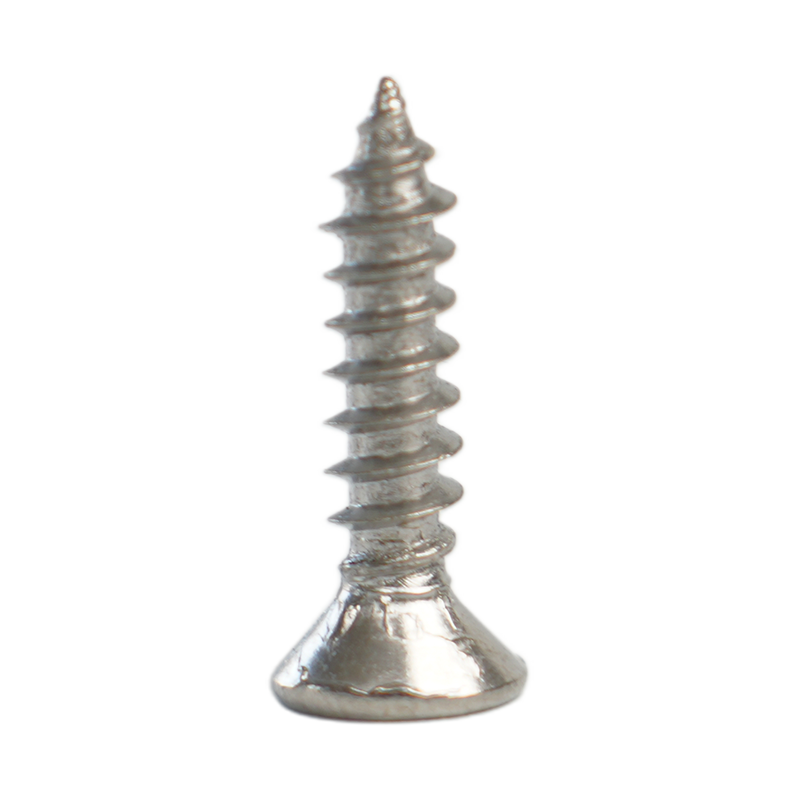

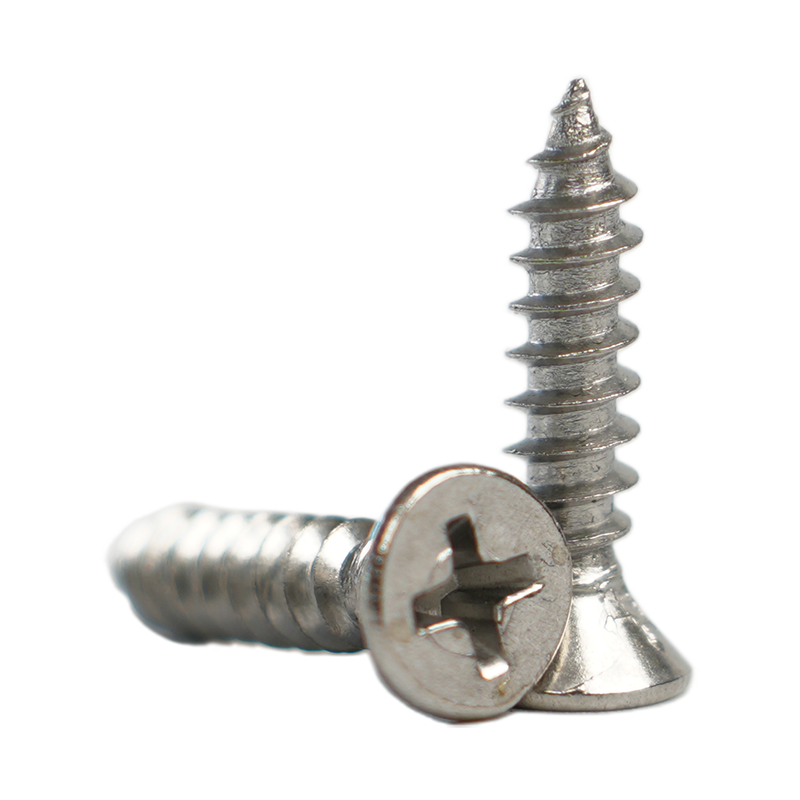

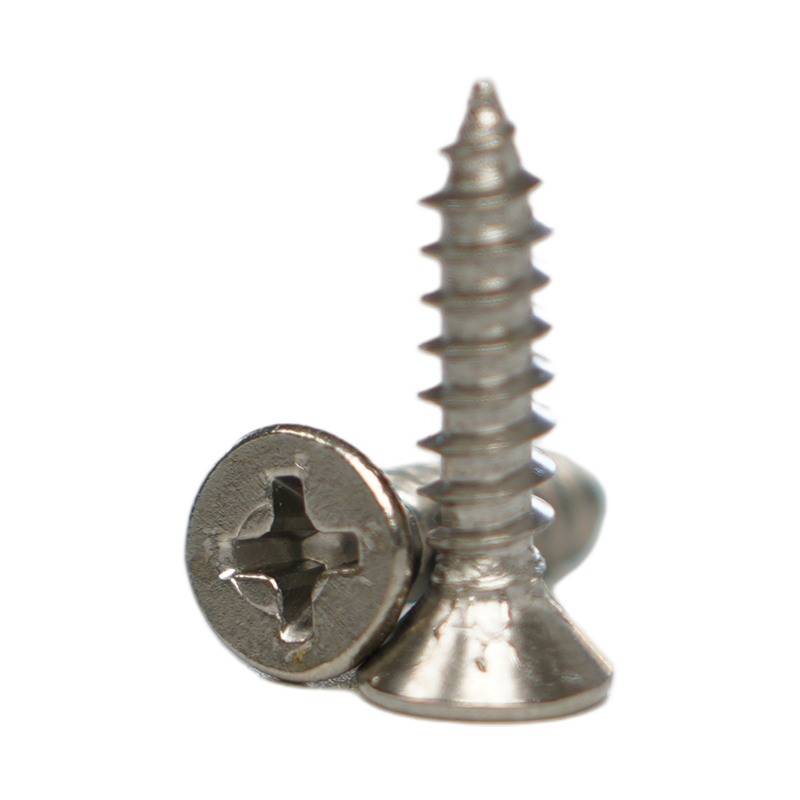

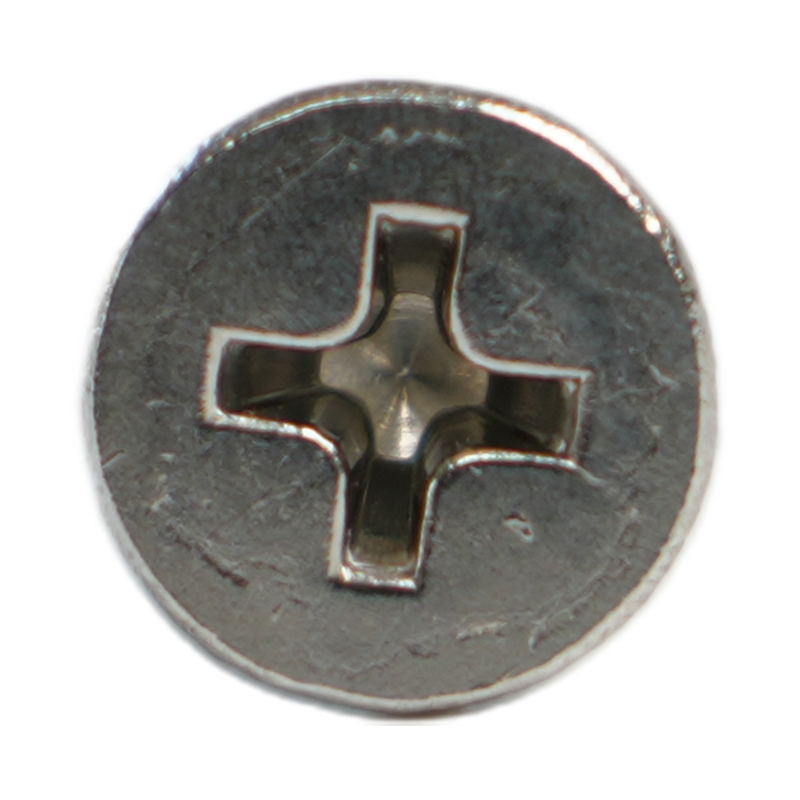

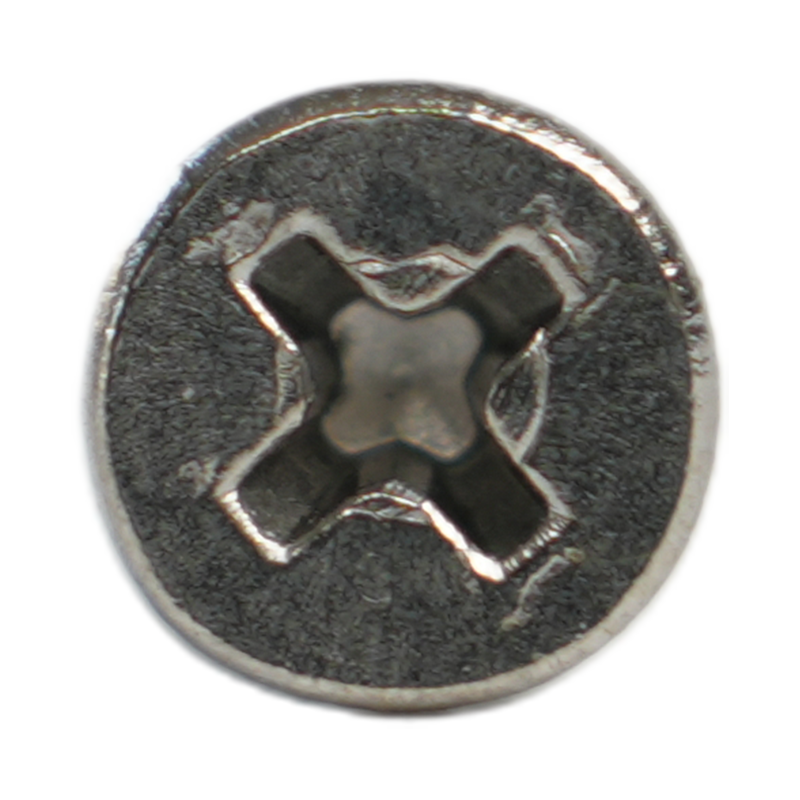

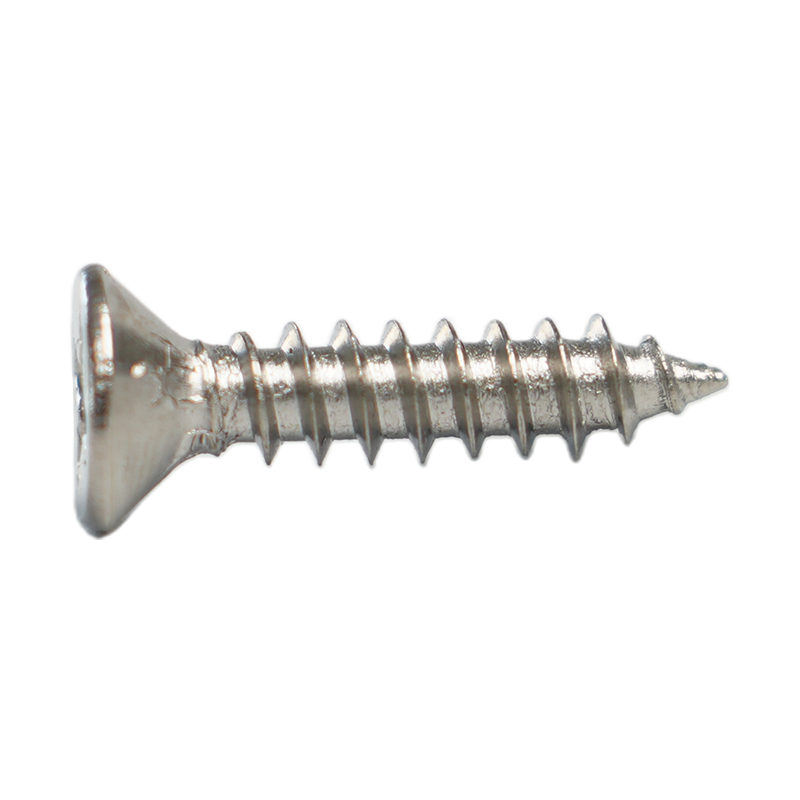

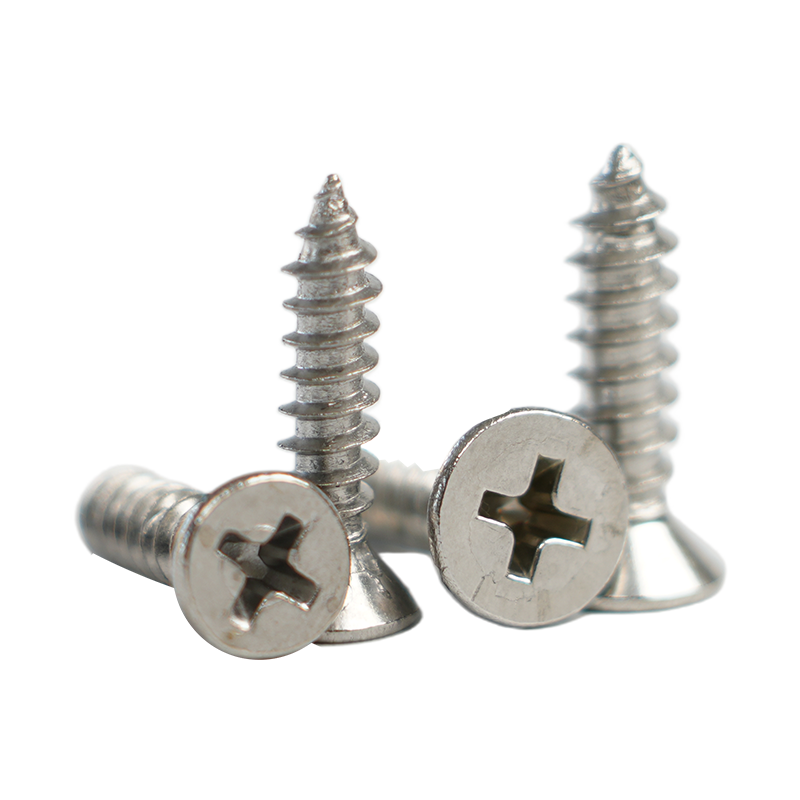

SUS410 countersunk self-tapping screw is a high-strength stainless steel screw that can easily penetrate the surface of the profile without damaging the cross groove and thread.
SUS410 countersunk self-tapping screw is a high-strength stainless steel screw that can easily penetrate the surface of the profile without damaging the cross groove and thread.
|
Material |
SUS410 |
|
Head type |
Countersunk head (also called flat head) English CSK or flat head |
|
Hardness |
Heat treatment strengthened |
| Thread size | Length | ||||||
| 2.9(#4) | 8,9.5,13,16,19,25,32mm (5/16"~1-1/4") |
||||||
| 3.5(#6) | 9.5,13,16,19,25,32mm (3/8"~1-1/4") |
||||||
| 3.9(#7) | 13,16,19,22,25,32,35,38,40,45,50mm (1/2"~2") |
||||||
| 4.2(#8) | 13,16,19,22,25,32,35,38,40,45,50,63,75mm (1/2"~3") |
||||||
| 4.8(#10) | 13,16,19,22,25,32,35,38,40,45,50,63,75,102mm (1/2"~4") |
||||||
| 5.5(#12) | 13,16,19,22,25,32,35,38,40,45,50,63,75,102mm (1/2"~4") |
||||||
