The Ultimate Guide to Selecting the Perfect Self-Drilling Screw

Understanding Self-Drilling Screws and Their Point System

Self-drilling screws are a revolutionary fastening solution that combines drilling, tapping, and fastening into a single operation. This eliminates the need for pre-drilling pilot holes, significantly saving time, labor, and overall project costs. At the heart of a self-drilling screw's functionality is its drill point, which is designed to penetrate various materials. The point is classified by a number system (e.g., #1, #2, #3, #4, #5) that indicates its length and capacity to drill through different thicknesses of metal. A higher number denotes a longer drill point and a greater capacity for thicker materials. Understanding this point system is the first critical step in selecting the right fastener for your application, ensuring both structural integrity and efficiency.

The Anatomy of a Self-Drilling Screw

To truly appreciate the engineering behind these fasteners, it's essential to break down their key components. Each part plays a vital role in the screw's performance.

The Drill Point

This is the most distinctive feature, acting as the drill bit. It is a hard, sharp, and fluted tip that bores the initial hole. The flute channels debris away from the hole during drilling, preventing clogging and ensuring a clean, precise fit. The quality of the steel and the precision of the heat treatment on the point are paramount; a poorly hardened point will dull quickly and fail to penetrate.

The Thread

Located just above the drill point, the thread is responsible for tapping the hole and creating the grip that holds the materials together. Thread designs vary widely, including fine, coarse, and high-low threads. Fine threads are often used for harder materials where a tighter grip is needed, while coarse or high-low threads are better for softer materials like wood or light-gauge metal, as they provide faster driving and reduced risk of material splitting.

The Shank

The shank is the body of the screw between the head and the threads. Some self-drilling screws have a smooth shank, while others have threads that run the entire length. A fully threaded screw provides greater clamping force, but a smooth shank section directly under the head can be beneficial in certain applications to prevent jacking—where the screw threads pull the top material down without drawing the bottom material up.

The Head

The head style determines the drive type and the final appearance of the installation. Common drive types include Phillips, square (Robertson), and Torx® (star), with Torx® becoming increasingly popular for its superior torque transfer and reduced cam-out. Head shapes like pan, flat, hex, and washer (trim) heads are chosen based on whether the head needs to sit flush with the material or remain exposed for use with a wrench.

Why the Point Number Matters

Selecting the wrong point number is a common and costly mistake. Using a screw with a point that is too short or weak for the material thickness will result in incomplete drilling, stripped heads, and broken fasteners. Conversely, using an overly aggressive point on very thin material can cause damage. The following table provides a general guideline for matching point numbers to material thickness.

It is always advisable to consult the technical specifications provided by a reputable Self Drilling Screw Manufacturer to confirm the exact capabilities of their products, as the quality of the steel and manufacturing process can influence performance.

Key Applications and Material Compatibility

The versatility of self-drilling screws extends across numerous industries, from construction and manufacturing to DIY projects. Their value is most apparent in high-volume applications where speed is critical. However, their effectiveness is entirely dependent on choosing a screw compatible with the base material. Using a screw designed for metal on hardwood will likely result in poor performance and vice versa.

Fastening Metal to Metal

This is the primary application for which self-drilling screws were originally engineered. They are indispensable in steel framing, metal roofing, siding, and HVAC installation. The key to success is matching the screw's point, thread, and coating to the specific type and thickness of metal being joined. For instance, fastening thin aluminum sheets requires a different screw geometry than joining two thick steel beams.

Fastening Wood to Metal

Self-drilling screws excel at attaching wooden components to metal substrates, a common task in building construction (e.g., attaching wood sill plates to steel foundation beams, or installing wooden fixtures on metal walls). For these applications, screws with a sharp drill point for the metal and aggressive, widely spaced threads for gripping the wood are ideal. This combination ensures a strong, secure connection without splitting the wood or failing to penetrate the metal.

Fastening into Masonry and Concrete

While not as common as their use with metal, specific self-drilling screws are designed for light-duty fastening into masonry and concrete. These screws typically feature a carbide tip that is harder than the standard steel point. It's crucial to understand that these are not meant for heavy structural loads; for those, concrete anchors or epoxy systems are more appropriate. However, for attaching fixtures, electrical boxes, or light framing to block or concrete walls, they offer a quick and effective solution without the need for anchors or shields, making them a popular choice for finding the best self drilling screws for metal studs that are mounted on masonry walls.

Critical Factors for Choosing the Right Screw

Beyond the point number and material, several other factors dictate the success of a fastening project. Overlooking these elements can lead to joint failure, corrosion, and project delays.

Coatings and Finishes: Corrosion Resistance

The environment in which the screw will be used is the single most important factor in determining the necessary coating. An unprotected steel screw will rust quickly, compromising both the appearance and the structural strength of the connection.

• Zinc Plating (Bright): A basic, economical finish that provides a minimal level of corrosion resistance. Suitable for interior, dry applications only.
• Mechanically Galvanized: Offers a thicker zinc layer than standard plating, providing better protection for outdoor applications with moderate exposure. It often has a rough, gray appearance.
• Hot-Dip Galvanized: This process creates a thick, durable zinc coating that is excellent for outdoor and corrosive environments. It is a standard for agricultural and coastal construction.
• Organic Coatings (e.g., Vestolit): These polymer coatings provide a specific color match (common for metal roofing) and excellent corrosion resistance. They are applied over a zinc base for dual-layer protection.
• Stainless Steel: The premium option for extreme corrosion resistance. Types 304 and 316 stainless steel are used in highly corrosive environments like chemical plants, marine applications, and food processing facilities. When searching for a stainless steel self drilling screw supplier, it is vital to verify the grade of stainless steel to ensure it meets the environmental demands.

Head Styles and Drive Types

The choice of head and drive affects installation speed, tooling, and the final look.

• Hex Washer Head (HWH): The most common head for metal roofing and siding. The integrated washer provides a large bearing surface and helps seal the hole. It requires a nut-setter or magnetic hex driver.
• Pan Head / Truss Head: These low-profile heads are often used when a smooth surface is desired or when fastening thin materials where a hex head might be overkill. They typically use a Phillips or Torx drive.

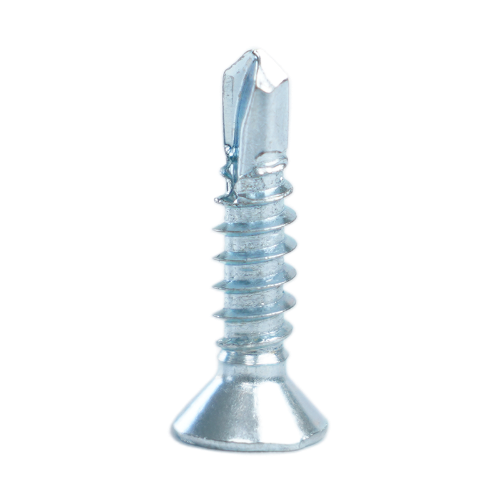

• Flat / Countersunk Head: Designed to sit flush with the material surface. Used in applications where protruding heads are not acceptable.
• Drive Types (Phillips vs. Torx): While Phillips is ubiquitous, it is prone to cam-out (slipping) at high torque, which can strip the drive and damage the screw. Torx drive (star-shaped) allows for much higher torque transfer with significantly less cam-out, leading to faster driving speeds, fewer damaged screws, and reduced operator fatigue. This is a critical consideration for professional use.

Common Installation Mistakes and How to Avoid Them

Even with the perfect screw, improper installation can lead to failure. Awareness of these common pitfalls is key to a successful project.

Over-Driving and Under-Driving

The clutch setting on your drill/driver is your best friend. Over-driving a self-drilling screw strips the threads in the hole, crushes the material, and compromises the seal (if it has a washer). Under-driving leaves the screw proud, which can snag and prevents the washer from forming a proper seal. The screw should be driven until the head makes firm contact with the material and the washer (if present) is slightly compressed, but not flattened completely. This is especially important when using self drilling screws for aluminum frames, as over-tightening can easily distort the softer metal.

Using Incorrect Speed and Pressure

Self-drilling screws require a different technique than standard screws. Operators often make the mistake of applying excessive downward pressure. The drill point is designed to pull the screw into the material; too much pressure can break the point or damage the material. Let the tool do the work. Use a high speed (RPM) with low pressure to start the hole, and then a lower speed with moderate pressure to drive the screw home. This ensures a clean cut and proper seating.

Ignoring Material Compatibility

As discussed, using a screw designed for soft wood on hardened steel will fail. Always double-check that the screw's point, thread, and material are suited for the substrates you are joining. This also includes considering galvanic corrosion—using a carbon steel screw on aluminum without a proper barrier can create a corrosive reaction. In such cases, a screw with a compatible coating or a stainless-steel screw is necessary.

Sourcing from a Quality Manufacturer

The market is flooded with fasteners of varying quality. Choosing a screw based solely on price is a risky strategy that can lead to project failures, callbacks, and safety issues. Partnering with a reliable manufacturer is crucial.

Consistency in Dimensional Tolerances

High-quality manufacturers adhere to strict dimensional standards (like ANSI or DIN). This means every screw in a box will have the same precise dimensions, ensuring consistent performance. Cheap, off-spec screws can have variations in thread pitch, head size, or point geometry that lead to driving problems and weak joints.

Superior Material Science and Heat Treatment

The difference between a good screw and a great screw is often in the metallurgy. Reputable manufacturers use quality steel and precisely controlled heat treatment processes. This results in a drill point that is hard enough to penetrate without being brittle, and a shank that is tough enough to withstand high torque without twisting off. A manufacturer that offers custom self drilling screw options typically has advanced engineering capabilities to tailor the material properties for specific, demanding applications.

Technical Support and Documentation

A true manufacturer provides comprehensive technical data sheets, application guides, and expert support. They can advise on the best screw for your unique project, helping you avoid costly mistakes. This level of support is never available from a generic import supplier. Furthermore, for businesses looking to differentiate their products, finding a partner that provides wholesale self drilling screws with logo imprint can be a valuable service for branding and inventory control.

Commitment to Testing and Certification

Look for manufacturers whose products are tested and certified by recognized international standards organizations (e.g., ISO). This independent verification provides assurance that the products meet defined levels of quality, performance, and consistency. It is a mark of a company that is committed to excellence and customer safety.
